High Precision Downpipe Roll Forming Machine For 1.2mm Thick GI GI Sheets
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NKH MACHINERY |
| Certification: | CE/SONCAP/CSA |
| Model Number: | YX135-273 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 UNIT |
| Price: | negotiation |
| Packaging Details: | NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET |
| Delivery Time: | 40 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 UNITS/MONTH |
|
Detail Information |
|||
| Name: | Roof Sheet Rolling Machine | Weight: | 5T Or As Per Request |
|---|---|---|---|
| Control System: | PLC Control System | Roller Material: | 45# Steel |
| Raw Material: | Pre Painted Coil Sheets, Soft Material | Shaft Diameter: | 75mm |
| Cutting Blade Material: | Cr12, Heat Treatment | Keyword: | Metal Roof Tile Making Machine |
| Highlight: | ce roof tile roll forming machine,prepainted roof tile roll forming machine,prepainted coil tile roll forming machine |
||
Product Description

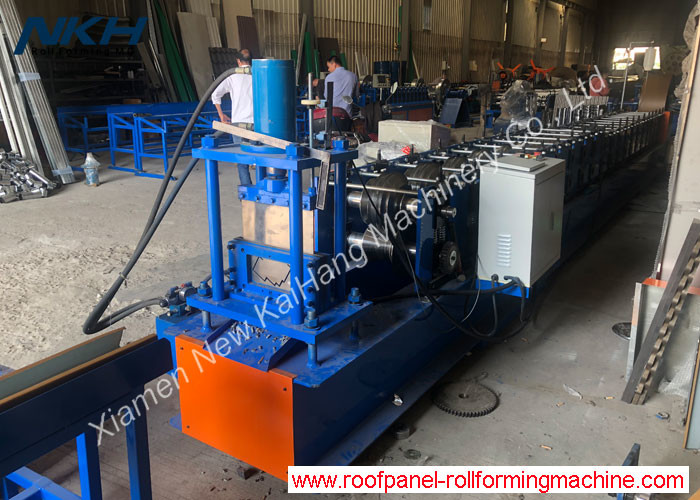

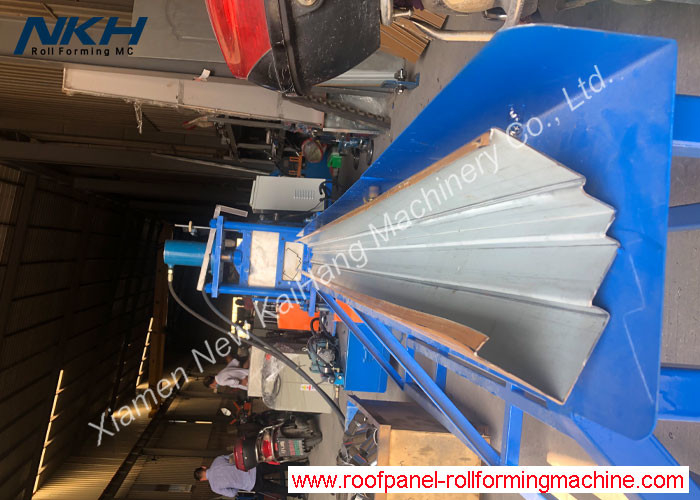

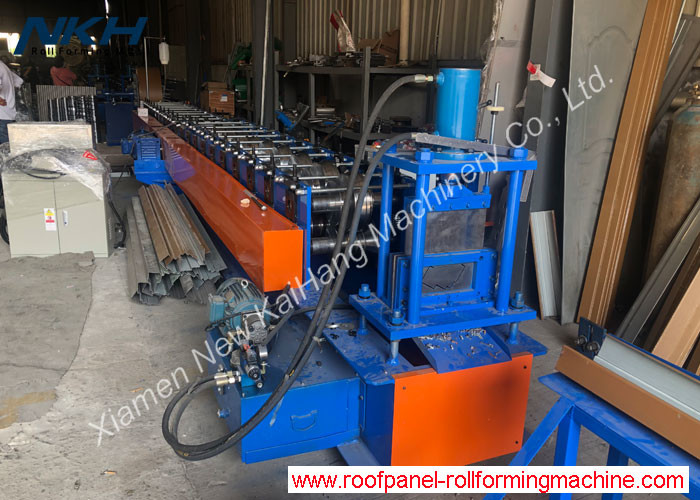

24 Forming Station Rainwater Gutter Roll Forming Machine For Rainwater Gutter, Gutter cold rolling mills
Technical data of downpipe roll forming machine
| Suitable material | color steel sheet; 0.4-0.8mm |
| Working speed | about 25m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 11Kw(Depend on final design) |
| Hydraulic station power: 3Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 75mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 6500KGS |
| Machine’s size | about 9m×1.8m× 1.5m (Depend on final design) |
1. PLC computer control
2. no noise,no shake
3. hydraulic system,long operating
4. easy operation
5. maintenance-free
Our Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.03mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : suggest Siemens PLC with touch screen , Schihlin/Schneider inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
