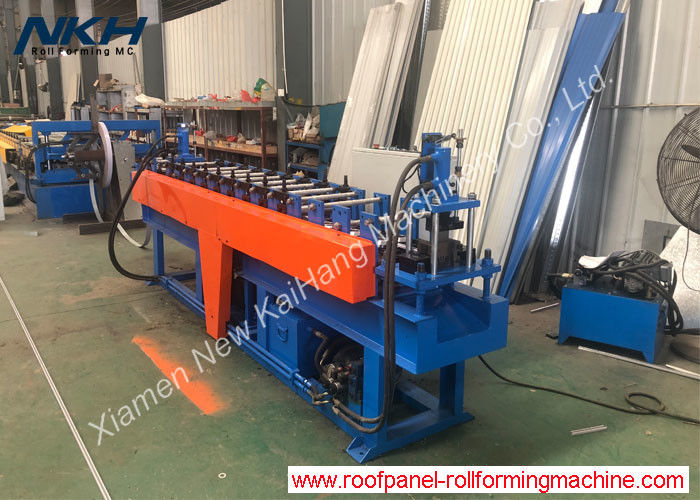

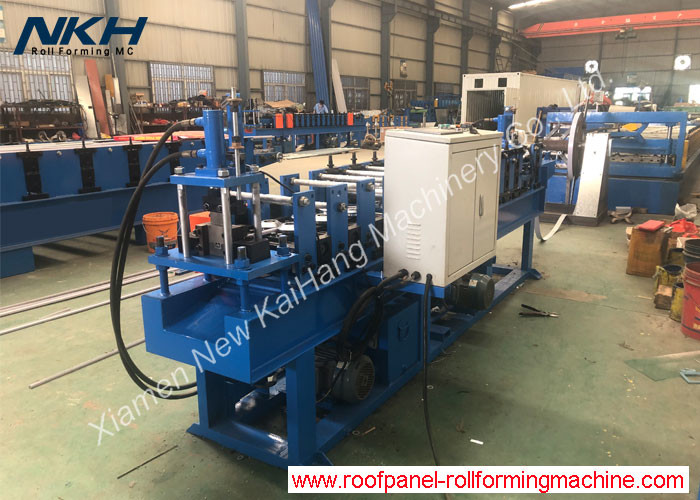

Thickness 0.6mm Drywall Steel Stud Roll Forming Machine

Thickness 0.6mm Drywall Steel Stud Roll Forming Machine

Product Details:
Place of Origin:	CHINA
Brand Name:	NKH MACHINERY
Certification:	CE/SONCAP/CSA
Model Number:	YX13-17
Payment & Shipping Terms:
Minimum Order Quantity:	1 UNIT
Price:	negotiation
Packaging Details:	NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time:	40 WORKING DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10 UNITS/MONTH

Contact Now

Detail Information
Name:	Ceil Studs Roll Forming Machine	Raw Material:	PPGI Sheets, G245
Shaft Material:	45#, High Precision	Control System:	PLC Control System
Cutting Blade Material:	Cr12, Heat Treatment	Roller Material:	45# Steel, CNC Lathes, Hard Chrome Coated
Highlight:	Drywall Steel Stud Roll Forming Machine , Thickness 0.6mm Stud Roll Forming Machine , Drywall Steel Stud Roll Former

Product Description

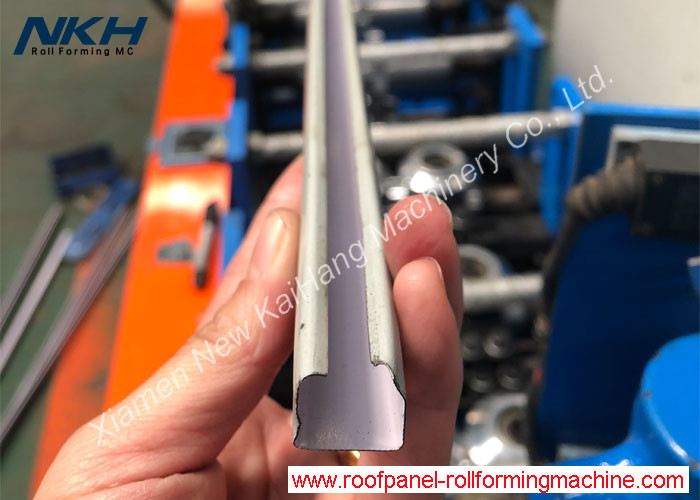

Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine

Quick Detail:

Thickness : 0.4-0.6mm
Material : G350 PPGI
Input width : as per drawings
1. Effective width: 17mm
2. Material weight : 1.5Tons
3. Coil inner diameter : 508mm
4. Driven way: by driven motor
5. Cutting way: after cut-off, there is no waste
6. Cutting tolerance : ±1mm

Application:

The machine is componient of simple decoiler rack, roll former, post cutting device and PLC control system

You can set any length you want to produce from different batches

Machine list:

1.5T*300mm manual un-coiler
Roll former
Hydraulic cutting device
Run out table
PLC control system

Description/Technical Parameter details of complete line:

1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

Roll forming machine with cutting details as below table :

Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.4mm-0.6mm
Coil input width	as per drawings
Carriage Frame design	Wall-plate-frame-design
Rolling mills forming stages	8 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ60mm
Main motor power	3.0Kw with reducer
Rolling speed of roll former	15m/min
Hydraulic group power	2.2Kw
Material of cutting blade	Cr12, hear treatment
Electric Voltage Standard	220V/60Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL 5015(Blue) or as per customer’s requirements
