Home ProductsPurlin Roll Forming Machine11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated
11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated
11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated
11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated 11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated 11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated 11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated

11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated

Product Details:
Place of Origin: CHINA
Brand Name: NKH MACHINERY
Certification: CE/SONCAP/CSA
Model Number: U50
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Delivery Time: 40 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH
Contact Now

Detail Information
Name: Purlin Roll Former Raw Material: GI Sheets, G350
Shaft Diameter: 75mm Cutting Blade Material: Cr12, Heat Treatment
Coil Weight: 1.5T Or As Request Warranty: 12 Months
Highlight:

CE Purlin Roll Forming Machine

,

11KW Purlin Roll Forming Machine

,

GI Steel Frame Purlin Roll Former

Product Description

China Power 11kw Steel Frame Roll Forming Machine , Modern U50 Purlin Machine CE Certificated factory



Quick Detail:

  1. Thickness : 1.5mm-2.3mm
  2. Material : Galvanized sheets
  3. Material weight : 1.5Mt
  4. Coil inner diameter : 508mm
  5. Driven way: by 11kw driven motor
  6. Cutting way: by hydraulic power pack, post punch, post cut
  7. Cutting tolerance : ±1mm

Machine list:

  1. Hydraulic De-coiler or Manual Un-coiler rack
  2. Pre-leveling device
  3. Roll forming machine
  4. Hydraulic Post-punch & Post- cut device
  5. Run out table
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 5TX600mm Hydraulic Un-coiler or manual de-coiler

You can adopt to :

Manual de-coiler

Hydraulic un-coiler

Hydraulic & Driven de-coiler

  • Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 1.5-2.3mm
Carriage Frame design wall-plate-frame-type
Rolling mills forming stages 10 stages
Material of forming roller Cr12, heat treatment
Shafts Diameter Φ75mm
Main motor power 11Kw
Production speed 18m/min
Hydraulic group power 7.5Kw
Material of cutting blade Cr12, heat treatment
Electric Voltage Standard 220V/50Hz/3PH or as request
Major Color of Machine Painted RAL 5012(Sky Blue) or as request
  • PLC Control System

         Simens PLC, touch screen, Omron encoder, Schneider/Shihlin/Delta inverter

  • Product Rack 4 meter long ,rolled type

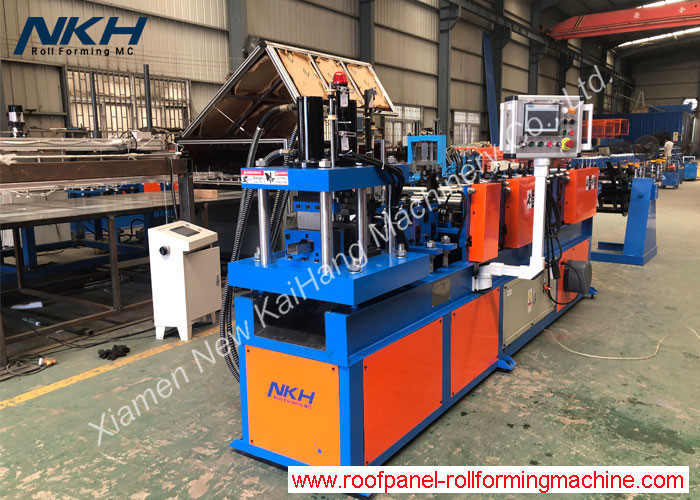

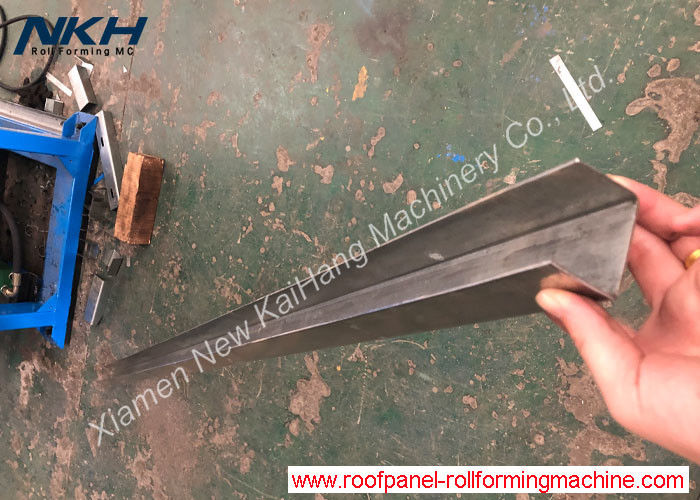

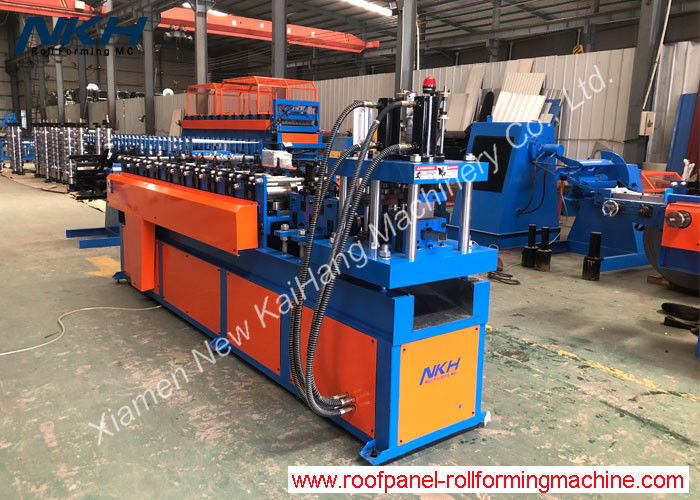

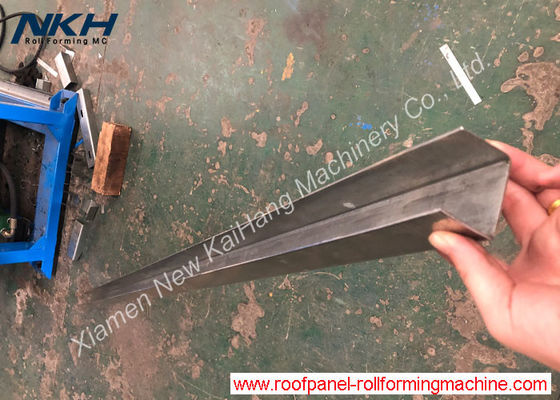

Profile Drawing/Layout/Equipment reference pictures:

11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated 011KW GI Steel Frame Purlin Roll Forming Machine CE Certificated 1
