Professional Metal Roof Roll Forming Machine For Fastening Panel / PPGL

Product Description

Decorative panel rolling machine, ceiling making machine

Quick Detail:

1. Thickness : 0.4-0.6mm
2. Material : G350 PPGI
3. Input width : 200mm
   1. Effective width: 138mm
   2. Material weight : 1.5Tons
   3. Coil inner diameter : 470mm
   4. Driven way: by 4Kw driven motor
   5. Cutting way: after cut-off, there is waste
   6. Cutting tolerance : ±1mm

Application:

This production line has been designed to produce metal wall or sandwich panels with PU or Polyurethane insulated and various decoration patterns embossed, engraved or printed on the metal face.

This profile is widely used in Philippines.

Machine list:

1. 1.5T*300mm manual or driven un-coiler
2. Roll forming machine
3. Hydraulic cutter
4. Run out rack
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• Hydraulic Cutting Device

Stop to cut, Post cut, there is waste

Hydraulic group, pump motor =3.0KW

Cutting tool material: Cr12, Heat treatment;

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, rolled type, 4 meter long

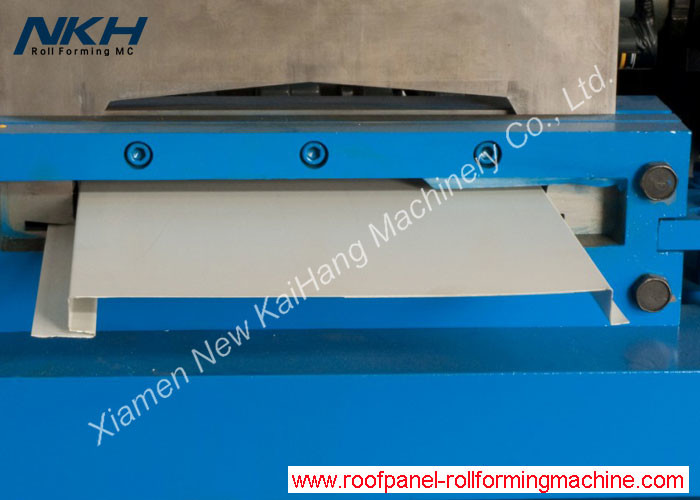

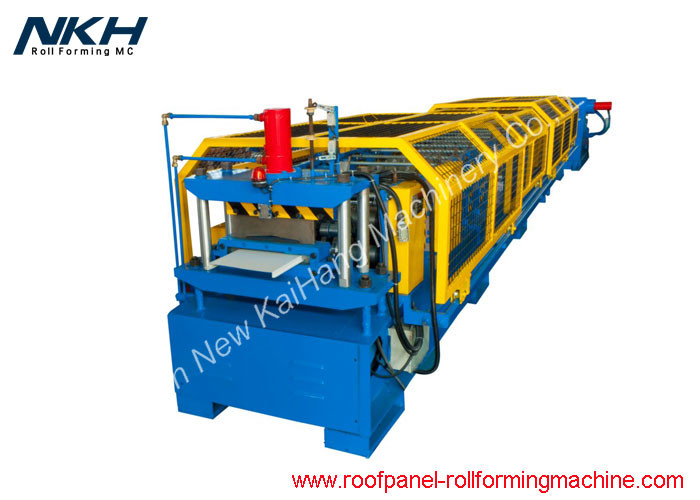

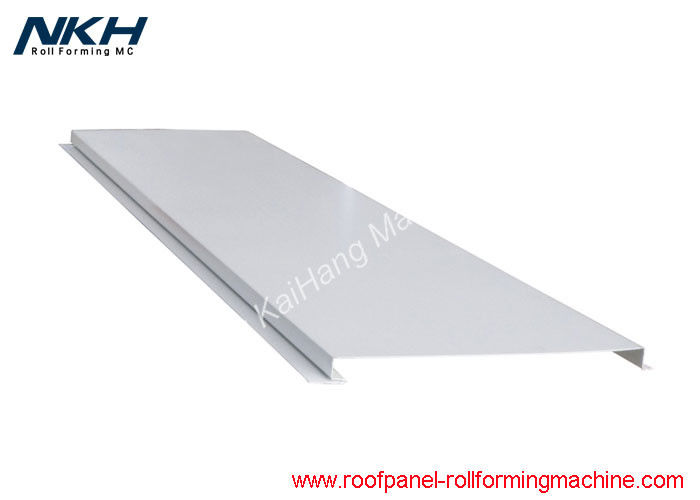

Profile Drawing/Layout/Equipment reference pictures:
